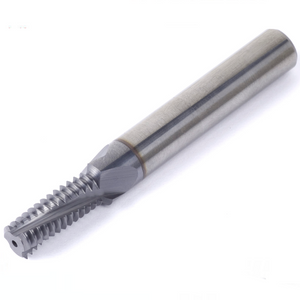

WHIT / BSF 3/4"x 12-2xD- 12 TPI Pitch Helical Flute Internal Carbide Thread Mill with Axial Coolant - (Helicool Series - Vardex)

104-00111

EW Equipment

  • £308.00

Only 5 left!

Thread Milling TM Solid Carbide HeliCool EX/IN 12 TPI W Shank Diameter 18 (mm) Cutting Diameter 16.2 (mm) Tool Overhang 39.16 (mm) VTH Grade

  • For Internal and EXTERNAL Machining
  • For WHIT threads
  • Ideal for Steel, Stainless Steel, HRSA's, Cast Iron & Non-Ferrous
  • Made from Micro grain Solid Carbide
  • TiCN coating for longer tool life
  • Axial coolant for blind holes

Thread Standard WHIT / BSF
Pitch 12TPI
EXT/INT EX/ IN
Coolant Yes
L 39.16mm
L1 39.16mm
Le 39.16mm
Cut Dia 16.2mm
Z 4
Zt 18
Grade VTH
Coating TiCN
Description HC18162L39-EI12BSFTMVTH
Shank Dia 18mm
