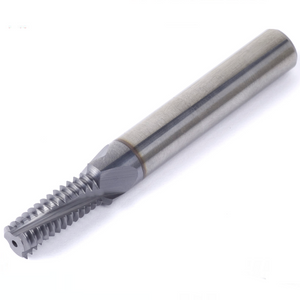

WHIT / BSF 5/8"x 14-2xD- 14 TPI Pitch Helical Flute Internal Carbide Thread Mill with Axial Coolant - (Helicool Series - Vardex) - Precision Engineering Tools EW Equipment

WHIT / BSF 5/8"x 14-2xD- 14 TPI Pitch Helical Flute Internal Carbide Thread Mill with Axial Coolant - (Helicool Series - Vardex)

104-00107

EW Equipment

  • £232.00

Only 5 left!

Thread Milling TM Solid Carbide HeliCool EX/IN 14 TPI W Shank Diameter 14 (mm) Cutting Diameter 13.4 (mm) Tool Overhang 31.75 (mm) VTH Grade

  • For Internal and EXTERNAL Machining
  • For WHIT threads
  • Ideal for Steel, Stainless Steel, HRSA's, Cast Iron & Non-Ferrous
  • Made from Micro grain Solid Carbide
  • TiCN coating for longer tool life
  • Axial coolant for blind holes

Thread Standard WHIT / BSF
Pitch 14TPI
EXT/INT EX/ IN
Coolant Yes
L 31.75mm
L1 31.75mm
Le 31.75mm
Cut Dia 13.4mm
Z 4
Zt 17
Grade VTH
Coating TiCN
Description HC14134L31-EI14BSFTMVTH
Shank Dia 14mm
