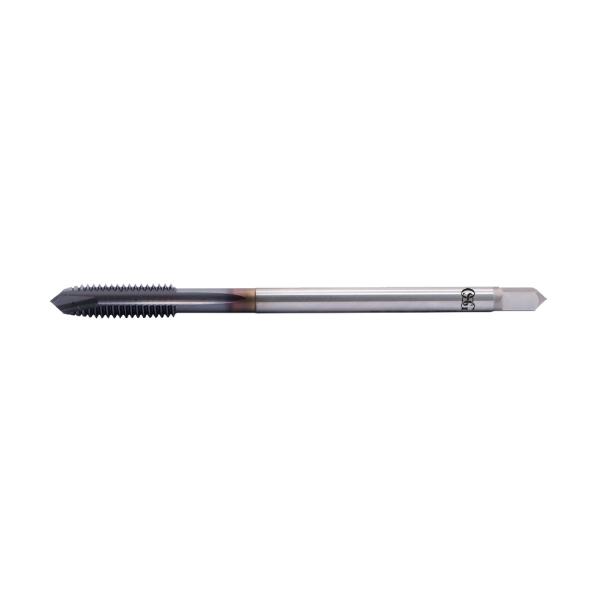

M6 x 1 A-POT DIN 371 Spiral Point HSS-PM Tap TiCN Coated For General Use - OSG
OSG-48145155
A-POT - Metric - DIN 371 - Type 2
Product features and benefits:
- First choice in quality and performance
- Powder metal spiral-point cutting tap for through holes
- Multilayer TiCN coating
- High speed tapping in general steels, aluminium, stainless steels
| Thread Type | M |
| Thread Diameter (TD) | 6mm |
| Pitch (TP) | 1mm |
| Functional Length (LF) | 80mm |
| Thread Length (THLGTH) | 19mm |
| Usable Length (LU) | 30mm |
| Shank Diameter (DCON) | 6mm |
| Drive Size (DRVS) | 4.9mm |
| Number of Flutes (NOF) | 3 |
| Pre-machined Hole Diameter (PHD) | 5mm |
| DIN | DIN 371 |
OSG-48145155 M6 X 1 A-POT DIN 371 SPIRAL POINT HSS-PM TAP TICN COATED FOR GENERAL USE - OSG
