2ER28UNVTX External American UN RH Threading Insert VTX Grade - Vargus
021-50159
American UN - 2ER28UNVTX - 11ER28UNVTX
VTX Grade: General purpose grade with tough submicron substrate. Provides good fracture toughness in non-rigid cutting conditions. TiAIN coated.
Please contact us for more info on many more grades that are available.
*The price of this product is the price per insert (1x pack)*

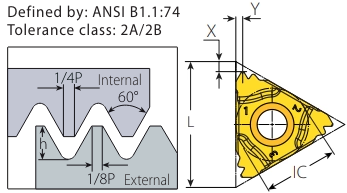

| IC | 1/4" (11ER) |
|
L |
11mm |
| Pitch (TPI) | 28 |
| h min | 0.56mm |
| X | 0.6mm |
| Y | 0.7mm |
| Tolerance | 2A |
| Anvil | - |
| Toolholder | NL..-2 |
021-50159
