5ER4UNVTX External American UN RH Threading Insert VTX Grade - Vargus
021-58983
American UN - 5ER4UNVTX - 27ER4UNVTX
VTX Grade: General purpose grade with tough submicron substrate. Provides good fracture toughness in non-rigid cutting conditions. TiAIN coated.
Please contact us for more info on many more grades that are available.
*The price of this product is the price per insert (1x pack)*

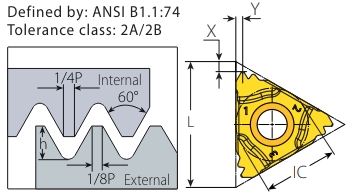

| IC | 5/8" (27ER) |
|
L |
27mm |
| Pitch (TPI) | 4 |
| h min | 3.89mm |
| X | 2.1mm |
| Y | 3.0mm |
| Tolerance | 2A |
| Anvil | YE5 |
| Toolholder | AL..-5 |
021-58983
