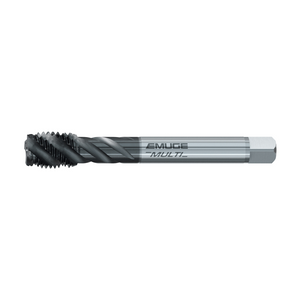

M12 x 1 - Emuge Spiral Flute Metric Fine Multi Tap GLT Coated

M12 x 1 - Emuge Spiral Flute Metric Fine Multi Tap GLT Coated

C550C400.0301

Emuge

  • £61.84


MF 12-SF-MULTI-GLT

HSSE tap for universal application in almost all workpiece materials.

GLT-1 coating - Hard surface coating with anti-friction layer. In a PVD process (500 °C) a coating thickness of 2-4 μm can be realized. The combination of a hard surface coating (approx. 3,000 HV) with an anti-friction layer provides maximum tool life. Chip flow is also improved.

Product features and benefits:

  • Tap for blind hole threads in long-chipping material.
  • Not to be recommended for threads beginning with an increased diameter.
  • Not available on next day delivery, please contact us to check availability if urgent. Standard delivery is 2-3 business days.

Thread MF
Diameter (d1) 12mm
Pitch 1mm
Coolant Supply Without
Geometry MULTI
Shank Diameter (d2) 9mm
OAL (l1) 100mm
Length of cutting edge (l2) 11mm
Square  7mm
Tap hole diameter 11mm
C550C400.0301
