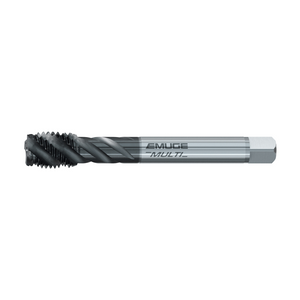

M14 x 1.5 - Emuge Spiral Flute Metric Fine Multi Tap GLT Coated

C550C400.0331

Emuge

  • £77.52


MF 14-SF-MULTI-GLT

HSSE tap for universal application in almost all workpiece materials.

GLT-1 coating - Hard surface coating with anti-friction layer. In a PVD process (500 °C) a coating thickness of 2-4 μm can be realized. The combination of a hard surface coating (approx. 3,000 HV) with an anti-friction layer provides maximum tool life. Chip flow is also improved.

Product features and benefits:

  • Tap for blind hole threads in long-chipping material.
  • Not to be recommended for threads beginning with an increased diameter.
  • Not available on next day delivery, please contact us to check availability if urgent. Standard delivery is 2-3 business days.

Thread MF
Diameter (d1) 14mm
Pitch 1.5mm
Coolant Supply Without
Geometry MULTI
Shank Diameter (d2) 11mm
OAL (l1) 100mm
Length of cutting edge (l2) 15mm
Square ■ 9mm
Tap hole diameter 12.5mm
C550C400.0331 M14 X 1.5 - EMUGE SPIRAL FLUTE METRIC FINE MULTI TAP GLT COATED
