3ER0.25ISOVTX External ISO Metric RH Threading Insert VTX Grade - Vargus
021-04764
ISO Metric - 3ER0.25ISOVTX - 16ER0.25ISOVTX
VTX Grade: General purpose grade with tough submicron substrate. Provides good fracture toughness in non-rigid cutting conditions. TiAIN coated.
Please contact us for more info on many more grades that are available.
*The price of this product is the price per insert (1x pack)*

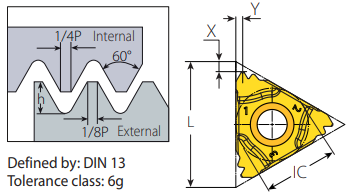

| IC | 3/8" (16ER) |
|
L |
16mm |
| Pitch (mm) | 0.25mm |
| h min | 0.14mm |
| X | 0.4mm |
| Y | 0.2mm |
| Tolerance | 6g |
| Anvil | YE3 |
| Toolholder | AL..-3 |
021-04764
3ER0.25ISOVTX EXTERNAL ISO METRIC RH THREADING INSERT VTX GRADE - VARGUS
