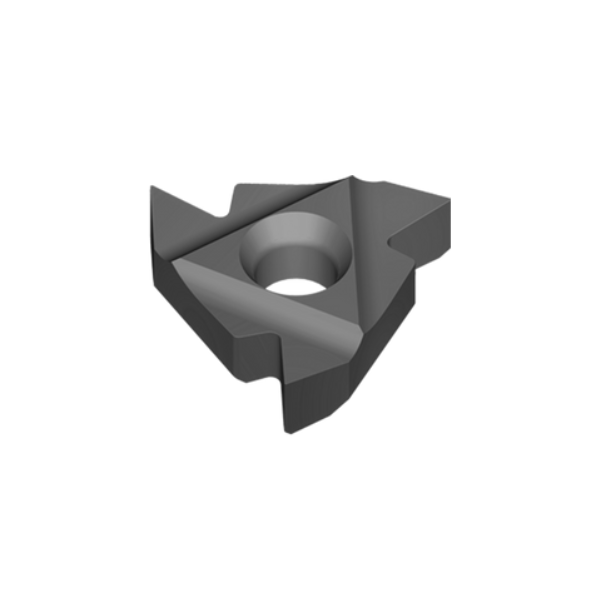

5ER5.5ISOVTX External ISO Metric RH Threading Insert VTX Grade - Vargus
021-59111
ISO Metric - 5ER5.5ISOVTX - 27ER5.5ISOVTX
VTX Grade: General purpose grade with tough submicron substrate. Provides good fracture toughness in non-rigid cutting conditions. TiAIN coated.
Please contact us for more info on many more grades that are available.
*The price of this product is the price per insert (1x pack)*

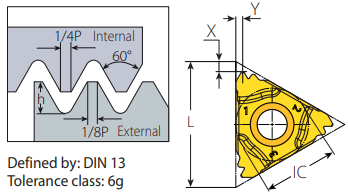

| IC | 5/8" (27ER) |
|
L |
27mm |
| Pitch (mm) | 5.5mm |
| h min | 3.37mm |
| X | 1.9mm |
| Y | 2.7mm |
| Tolerance | 6g |
| Anvil | YE5 |
| Toolholder | AL..-5 |
021-59111
