25x23mm Shank - A2™ Cut-Off Tool Block To Hold 32mm Blade - Kennametal
1878095

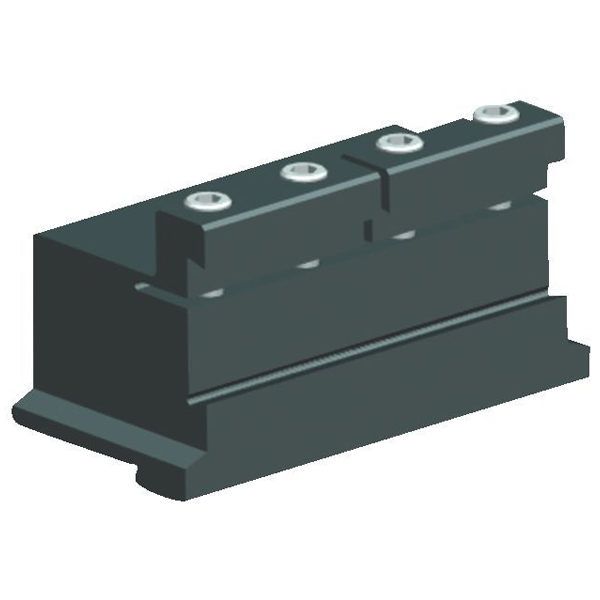

A2™ Cut-Off Tool Block
A2TZN2523J32
Features and Benefits:
- Integral Clamp
- Grooving and cut-off
- To hold 32mm Cut-Off Blade

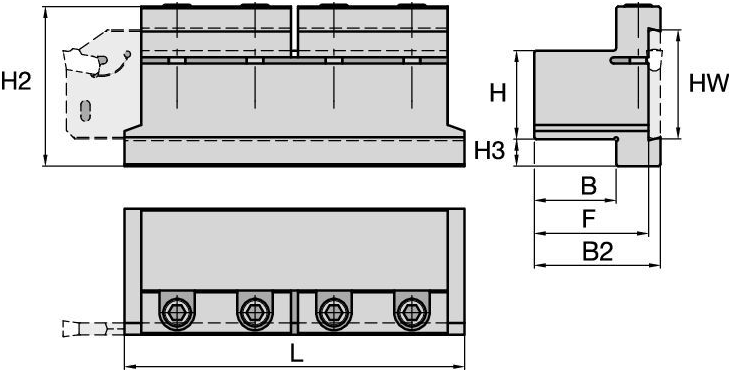

| Blade Height (HW) | 32mm |
| Shank Height (H) | 25mm |
| Shank Width (B) | 23mm |
| F | 34.5mm |
| Overall Height (H2) | 47.5mm |
| Overall Width (B2) | 40mm |
| Head Bottom Offset (H3) | 8mm |
| Overall Length (L) | 110mm |
| Clamp Screw ID Drive Size | 5mm |
