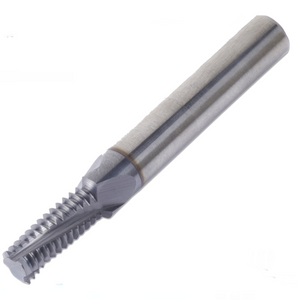

M10x1.5 2xDo - 1.5mm Pitch Internal Carbide Thread Mill - Vardex Helical
101-00008
Thread Milling TM Solid Carbide Helical IN 1.5 mm ISO Shank Diameter 8 (mm) Cutting Diameter 7.7 (mm) Tool Overhang 21 (mm) VTH Grade
- For Internal Machining
- For Metric threads
- Made from Micrograin Solid Carbide
- Ideal for Steel, Stainless Steel, HRSA's, Cast Iron & Non-Ferrouse
- TiCN coating for longer tool life
| Thread Standard | ISO Metic |
| Pitch | 1.5mm |
| EXT/INT | IN |
| Coolant | No |
| L | 21mm |
| L1 | 21.0mm |
| Le | 21mm |
| Cutting Dia | 7.7mm |
| Z | 3 |
| Zt | 14 |
| Grade | VTH |
| Coating | TiCN |
| Shank Dia | 8mm |
| Description | H08077L21-I1.5ISOTMVTH |
