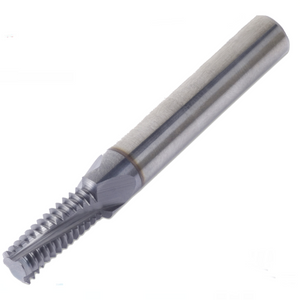

M12x1.75 2xDo - 1.75mm Pitch Internal Carbide Thread Mill - Vardex Helical
101-00019
Thread Milling TM Solid Carbide Helical IN 1.75 mm ISO Shank Diameter 10 (mm) Cutting Diameter 8.7 (mm) Tool Overhang 24.5 (mm) VTH Grade
- For Internal Machining
- For Metric threads
- Made from Micrograin Solid Carbide
- Ideal for Steel, Stainless Steel, HRSA's, Cast Iron & Non-Ferrouse
- TiCN coating for longer tool life
| Thread Standard | ISO Metic |
| Pitch | 1.75mm |
| EXT/INT | IN |
| Coolant | No |
| L | 24.5mm |
| L1 | 24.5mm |
| Le | 24.5mm |
| Cutting Dia | 8.7mm |
| Z | 4 |
| Zt | 14 |
| Grade | VTH |
| Coating | TiCN |
| Shank Dia | 10mm |
| Description | H10087L24-I1.75ISOTMVTH |
