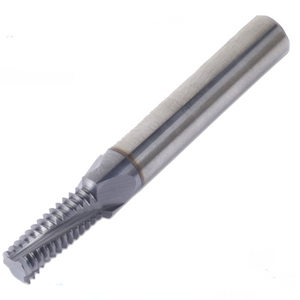

M16x1.5 2xDo - 1.5mm Pitch Internal Carbide Thread Mill - Vardex Helical
101-00014
Thread Milling TM Solid Carbide Helical IN 1.5 mm ISO Shank Diameter 12 (mm) Cutting Diameter 11.9 (mm) Tool Overhang 33 (mm) VTH Grade
- For Internal Machining
- For Metric threads
- Made from Micrograin Solid Carbide
- Ideal for Steel, Stainless Steel, HRSA's, Cast Iron & Non-Ferrouse
- TiCN coating for longer tool life
| Thread Standard | ISO Metic |
| Pitch | 1.5mm |
| EXT/INT | IN |
| Coolant | No |
| L | 33mm |
| L1 | 33.0mm |
| Le | 33m |
| Cutting Dia | 11.9mm |
| Z | 4 |
| Zt | 22 |
| Grade | VTH |
| Coating | TiCN |
| Shank Dia | 12mm |
| Description | H12119L33-I1.5ISOTMVTH |
