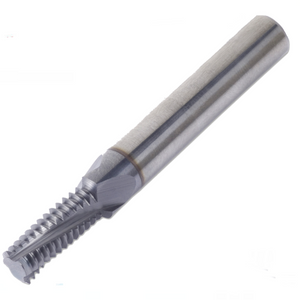

M18x2.5 2xDo - 2.5mm Pitch Internal Carbide Thread Mill - Vardex Helical
101-00024
Thread Milling TM Solid Carbide Helical IN 2.5 mm ISO Shank Diameter 16 (mm) Cutting Diameter 13.9 (mm) Tool Overhang 40 (mm) VTH Grade
- For Internal Machining
- For Metric threads
- Made from Micrograin Solid Carbide
- Ideal for Steel, Stainless Steel, HRSA's, Cast Iron & Non-Ferrouse
- TiCN coating for longer tool life
| Thread Standard | ISO Metic |
| Pitch | 2.5mm |
| EXT/INT | IN |
| Coolant | No |
| L | 40mm |
| L1 | 40.0mm |
| Le | 40mm |
| Cutting Dia | 13.9mm |
| Z | 5 |
| Zt | 16 |
| Grade | VTH |
| Coating | TiCN |
| Shank Dia | 16mm |
| Description | H16139L40-I2.5ISOTMVTH |
