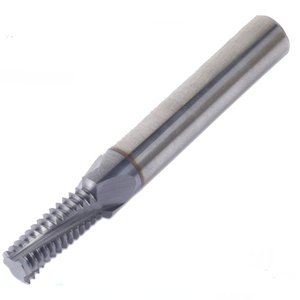

M24x3.0 2xDo - 3.0mm Pitch Internal Carbide Thread Mill - Vardex Helical
101-00023
Thread Milling TM Solid Carbide Helical IN 3 mm ISO Shank Diameter 16 (mm) Cutting Diameter 15.9 (mm) Tool Overhang 42 (mm) VTH Grade
- For Internal Machining
- For Metric threads
- Made from Micrograin Solid Carbide
- Ideal for Steel, Stainless Steel, HRSA's, Cast Iron & Non-Ferrouse
- TiCN coating for longer tool life
| Thread Standard | ISO Metic |
| Pitch | 3.0mm |
| EXT/INT | IN |
| Coolant | No |
| L | 42mm |
| L1 | 42.0mm |
| Le | 42mm |
| Cutting Dia | 15.9mm |
| Z | 4 |
| Zt | 14 |
| Grade | VTH |
| Coating | TiCN |
| Shank Dia | 16mm |
| Description | H16159L42-I3.0ISOTMVTH |
