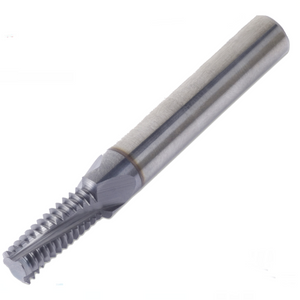

M8x1.25 2xDo - 1.25mm Pitch Internal Carbide Thread Mill - Vardex Helical
101-00016
Thread Milling TM Solid Carbide Helical IN 1.25 mm ISO Shank Diameter 6 (mm) Cutting Diameter 5.8 (mm) Tool Overhang 16.25 (mm) VTH Grade
- For Internal Machining
- For Metric threads
- Made from Micrograin Solid Carbide
- Ideal for Steel, Stainless Steel, HRSA's, Cast Iron & Non-Ferrouse
- TiCN coating for longer tool life
| Thread Standard | ISO Metic |
| Pitch | 1.25mm |
| EXT/INT | IN |
| Coolant | No |
| L | 16.25mm |
| L1 | 16.25mm |
| Le | 16.25mm |
| Cutting Dia | 5.8mm |
| Z | 3 |
| Zt | 13 |
| Grade | VTH |
| Coating | TiCN |
| Shank Dia | 6mm |
| Description | H06058L16-I1.25ISOTMVTH |
