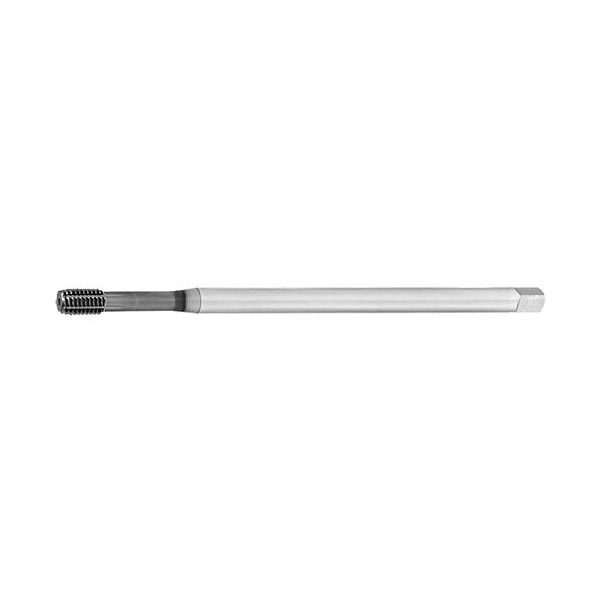

M12 x 1.75 S-LT-XPF Long Series Thread Forming Tap TiCN Coated For General Use - OSG
OSG-48115179
S-LT-XPF - M12 x 1.75
Product features and benefits:
- First choice in quality and performance
- HSSE forming tap for through and blind holes
- Multilayer TiCN coating
- For general steels, stainless steels, aluminium
- With long shank for long reach threading
| Thread Type | M |
| Thread Diameter (TD) | 12mm |
| Pitch (TP) | 1.75mm |
| Functional Length (LF) | 200mm |
| Thread Length (THLGTH) | 17mm |
| Shank Diameter (DCON) | 9mm |
| Drive Size (DRVS) | 7mm |
| Number of Flutes (NOF) | 8 |
| Pre-machined Hole Diameter (PHD) | 11.10 ~ 11.20 |
| Type | 3 |
