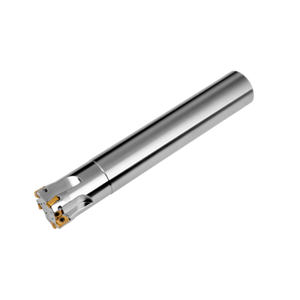

32E5R120A32-SBN10-C Dormer Pramet 25.4mm High Feed End Milling Cutter - DIN 1835A
32E5R120A32-SBN10-C
32E5R120A32-SBN10-C - High Feed End Milling Cutter
Features and Benefits:
- High feed cutter with positve/negative geometry which utilises 2 off BNGX 10T3.. or ANHX 10T3.. inserts.
- Through coolant and differential pitch for face milling, copy milling, shallow shoulder milling, ramping, helical milling, plunge milling and progressive plunge milling.
- Maximum depth of cut of 1.0mm.
| Cutting diameter maximum (DCX) | 32mm |
| Cutting diameter (DC) | 25.4mm |
| Overall length (OAL) | 200mm |
| Connection diameter (DCON) | 32mm |
| Usable Length (LU) | 120mm |
| Peripheral effective cutting edge count (ZEFP) | 5 |
| Cutting pitch differential (CPDF) | Yes |
| Rotational speed maximum (RPMX) | 21900 |
