35E6R050A32-SBN10-C Dormer Pramet 28.4mm High Feed End Milling Cutter - DIN 1835A - Precision Engineering Tools EW Equipment

35E6R050A32-SBN10-C Dormer Pramet 28.4mm High Feed End Milling Cutter - DIN 1835A

35E6R050A32-SBN10-C

Dormer Pramet

  • £374.76

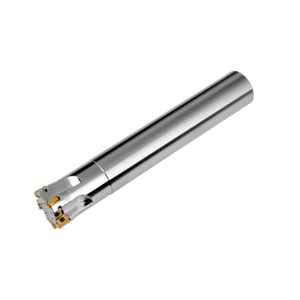

35E6R050A32-SBN10-C - High Feed End Milling Cutter

Features and Benefits:

  • High feed cutter with positve/negative geometry which utilises 2 off BNGX 10T3.. or ANHX 10T3.. inserts.
  • Through coolant and differential pitch for face milling, copy milling, shallow shoulder milling, ramping, helical milling, plunge milling and progressive plunge milling.
  • Maximum depth of cut of 1.0mm.
 Cutting diameter maximum (DCX) 35mm
Cutting diameter (DC) 28.4mm
Overall length (OAL) 200mm
Connection diameter (DCON) 32mm
Usable Length (LU) 50mm
Peripheral effective cutting edge count (ZEFP) 6
Cutting pitch differential (CPDF) Yes
Rotational speed maximum (RPMX) 21000
35E6R050A32-SBN10-C
