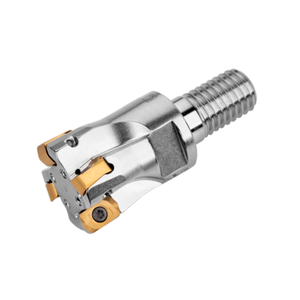

25E5R033M12-SBN10-C Dormer Pramet 18.4mm Modular Head for High Feed Milling
25E5R033M12-SBN10-C
25E5R033M12-SBN10-C - Modular Head for High Feed Milling
Features and Benefits:
- High feed cutter with positve/negative geometry which utilises 2 off BNGX 10T3.. or ANHX 10T3.. inserts.
- Through coolant and differential pitch for face milling, copy milling, shallow shoulder milling, ramping, helical milling, plunge milling and progressive plunge milling.
- Maximum depth of cut of 1.0mm.
| Cutting diameter maximum (DCX) | 25mm |
| Cutting diameter (DC) | 18.4mm |
| Overall length (OAL) | 55mm |
| Connection diameter (DCON) | 12.5mm |
| Functional length (LF) | 33mm |
| Thread diameter size (TDZ) | M12 |
| Peripheral effective cutting edge count (ZEFP) | 5 |
