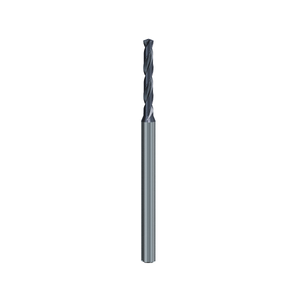

For Nr. 4 UNC Taps - TE109924 - Solid Carbide Drill - Micro MULTI
Features and Benefits:
- Solid carbide twist drill EF-Drill Micro Multi, factory standard, for universal use in different materials.
- Special TIALN - coating for excellent wear resistance and drilling performance.
- Without internal cooling for shallow drilling depths.
- Point Angle - 118°
| Tool Indent |
Nr. 4
|
| Diameter (D1)
|
2.35mm |
| Overall Length (l1)
|
38mm |
| Flute Length (l2)
|
12mm |
| Usable Length (l3)
|
8.95mm |
| Shank Length (l4)
|
26mm |
| Shank Diameter (D2)
|
3mm |
| Coating |
TIALN-T21 |
| Tolerance |
h6 |
TE109924.0235 2.35MM SOLID CARBIDE MICRO MULTI DRILL (FOR NR. 4 UNC TAP) - EMUGE FRANKEN
