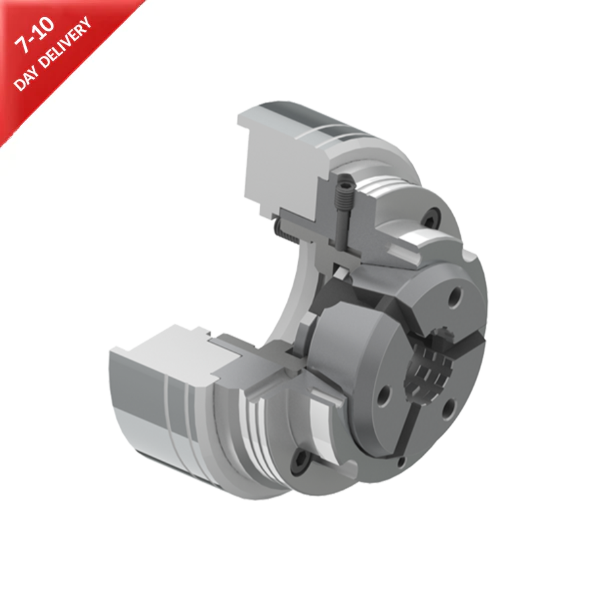

Spann-ER SPA42-120 Z - Cylindrical Through Hole Toolholder 140x90 - Eroglu
SPA42-120 Z
Spann-ER - SPA42 (4-42) - 120mm Recess ⌀ (Zyl.Gr)
This item is on a 7-10 day delivery, please contact us for more info on lead time/stock.

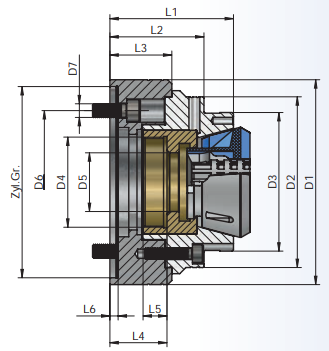

| Description/Clamping Diameter | SPA-42 (4-42) |
| Zyl.Gr (Recess ⌀) | 120mm |
| D1 | 140mm |
| D2 | 125mm |
| D3 | 102mm |
| D4 | M66x1.5 |
| D5 | 43mm |
| D6 | 104.8mm |
| D7 | M10 (3x120°) |
| L1 | 90mm |
| L2 | 68.5mm |
| L3 | 45mm |
| L4 | 37.5mm |
| L5 | 17.5mm |
| L6 | 6mm |
| max. | 7.000 min-1 |
