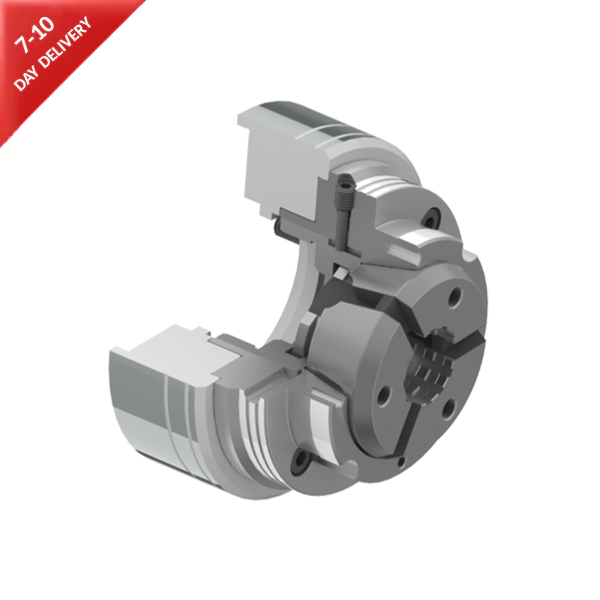

Spann-ER SPA65-170 Z - Cylindrical Through Hole Toolholder 185x95 - Eroglu
SPA65-170 Z
Spann-ER - SPA65 (6-65) - 170mm Recess ⌀ (Zyl.Gr)
This item is on a 7-10 day delivery, please contact us for more info on lead time/stock.

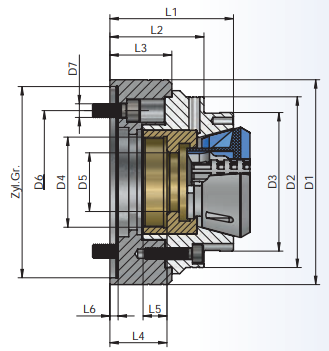

| Description/Clamping Diameter | SPA-65 (6-65) |
| Zyl.Gr (Recess ⌀) | 170mm |
| D1 | 185mm |
| D2 | 155mm |
| D3 | 120mm |
| D4 | M78x1.5 |
| D5 | 67mm |
| D6 | 133.4mm |
| D7 | M12 (6x60°) |
| L1 | 95mm |
| L2 | 74mm |
| L3 | 50mm |
| L4 | 42mm |
| L5 | 17.5mm |
| L6 | 6mm |
| max. | 6.000 min-1 |
