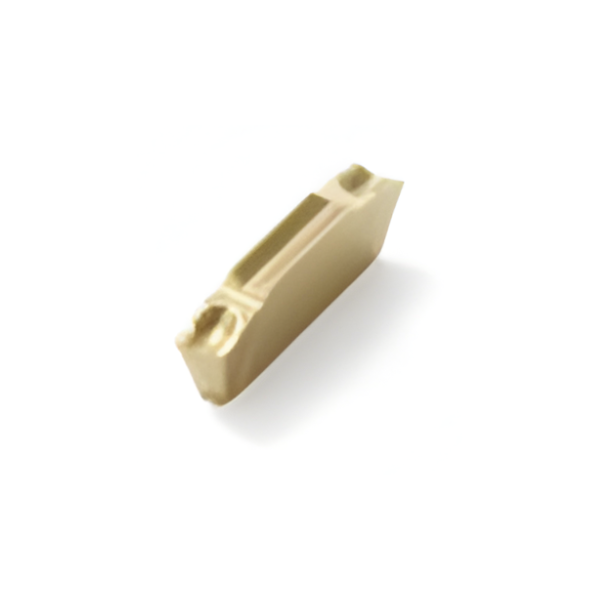

LCMF 160402-0400-MCR15 Carbide Turning/Grooving Inserts (Pack of 10) - Grade: CP600 - Seco
00088704 (C)LCMF 160402-0400-MCR15
Multi-Directional Turning and Grooving
GRADE: CP600

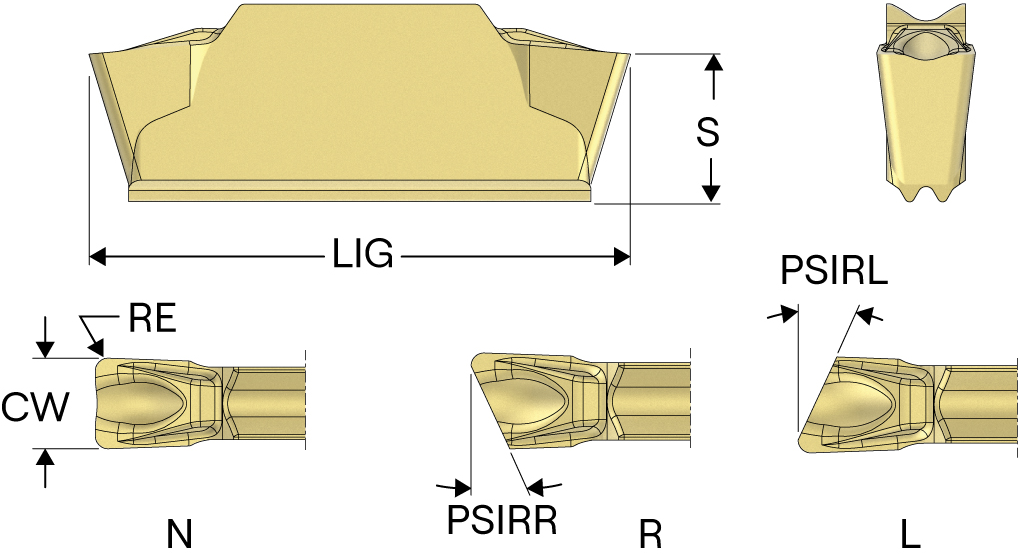

| Cutting Width (CW) | 4.00mm |
| Insert Gauge Length (LIG) | 15.9mm |
| Cutting Edge Angle Major Right Hand (PSIRR) | 15.0 deg |
| Cutting Edge Angle Major Right Hand (PSIRL) | 0.0 deg |
| Corner Radius (RE) | 0.20mm |
| Insert Thickness (S) | 4.50mm |
00088704 (C) LCMF 160402-0400-MCR15 CARBIDE TURNING/GROOVING INSERTS (PACK OF 10) - GRADE: CP600 - SECO
