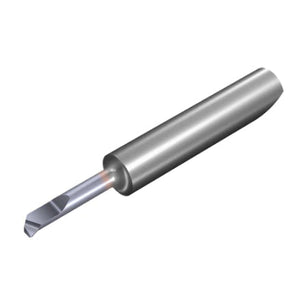

Vargus Microscope Boring & Chamfering 45° Insert - M662CH4545L25LVBX - 6.2mm Min Bore Dia - 25mm Reach - Rad 0.2r (6mm Shank) - Left Hand
063-00115
M662CH4545L25LVBX - Left Hand
Microscope Boring & Chamfering 45° Insert.
Features and Benefits:
-
Better chip evacuation for secure machining.
-
Longer tool life.
View the full Vargus Microscope Catalogue HERE.
| Description | M662CH4545L25LVBX |
| Shank Dia d(mm) |
6.0 |
| Min Bore Dia D min. (mm) |
6.2 |
| L1 | 25 |
| Rad | 0.2 |
| F | 2.95 |
| S max | 0.7 |
| a | 5.95 |
| b | 4.0 |
| α° | 45 |
| L2 ref* | 28.5 |
| L ref | 52.2 |
| Grade | VBX |
| EXT/INT | INT |
| R/L Hand | LH |
