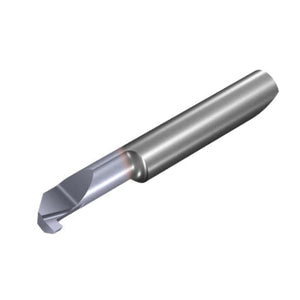

Vargus Microscope Square Grooving Insert - M552GSW200L15RVBX - 2.00mm Groove Width - 15mm Reach - 5.2mm Min Bore Dia (5mm Shank)
044-00019
M552GSW200L15RVBX
Microscope Square Grooving Insert.
Features and Benefits:
-
Better chip evacuation for secure machining.
-
Longer tool life.
View the full Vargus Microscope Catalogue HERE.
| Description | M552GSW200L15RVBX |
| Shank Dia d(mm) |
5.0 |
| Min Bore Dia D min. (mm) |
5.2 |
| Groove Width W±0.025 | 2.00 |
| t max | 1 |
| L1 | 15 |
| F | 2.40 |
| Rad | 0.1 |
| a | 4.90 |
| b | 3.7 |
| L2 ref* | 18.15 |
| L ref | 41 |
| Grade | VBX |
| EXT/INT | INT |
| R/L Hand | RH |
