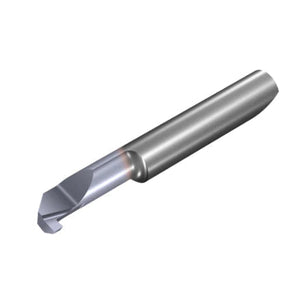

Vargus Microscope Square Grooving Insert - M662GSW100L30RVBX - 1.00mm Groove Width - 30mm Reach - 6.2mm Min Bore Dia (6mm Shank)
044-00027
M662GSW100L30RVBX
Microscope Square Grooving Insert.
Features and Benefits:
-
Better chip evacuation for secure machining.
-
Longer tool life.
View the full Vargus Microscope Catalogue HERE.
| Description | M662GSW100L30RVBX |
| Shank Dia d(mm) |
6.0 |
| Min Bore Dia D min. (mm) |
6.2 |
| Groove Width W±0.025 | 1.00 |
| t max | 1.8 |
| L1 | 30 |
| F | 2.90 |
| Rad | 0.1 |
| a | 5.90 |
| b | 4.0 |
| L2 ref* | 32.3 |
| L ref | 56 |
| Grade | VBX |
| EXT/INT | INT |
| R/L Hand | RH |
