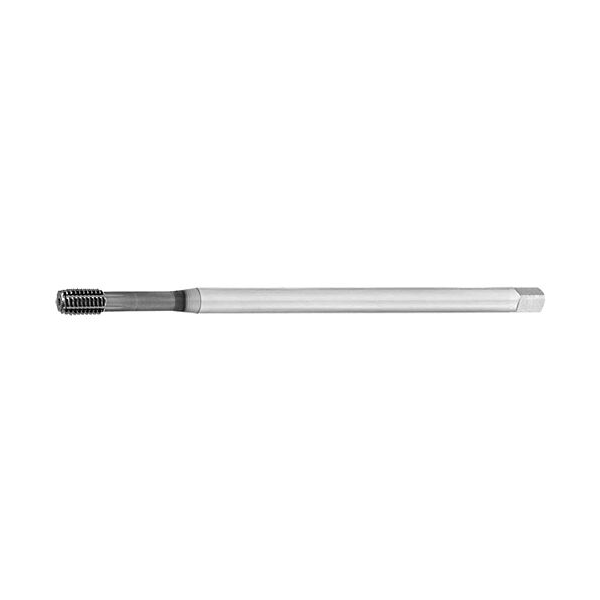

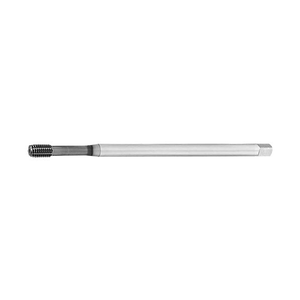

M3 x 0.5 S-LT-XPF Long Series Thread Forming Tap TiCN Coated For General Use - OSG
OSG-48115138
S-LT-XPF - M3 x 0.5
Product features and benefits:
- First choice in quality and performance
- HSSE forming tap for through and blind holes
- Multilayer TiCN coating
- For general steels, stainless steels, aluminium
- With long shank for long reach threading
| Thread Type | M |
| Thread Diameter (TD) | 3mm |
| Pitch (TP) | 0.5mm |
| Functional Length (LF) | 100mm |
| Neck Length (LU) | 18mm |
| Shank Diameter (DCON) | 3.5mm |
| Drive Size (DRVS) | 2.7mm |
| Number of Flutes (NOF) | 4 |
| Pre-machined Hole Diameter (PHD) | 2.77 ~ 2.82 |
| Type | 2 |
