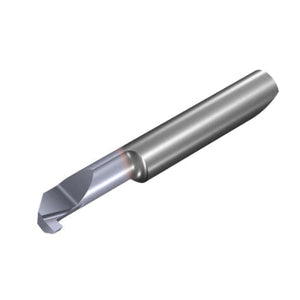

Vargus Microscope Square Grooving Insert - M772GSW150L15RVBX - 1.50mm Groove Width - 15mm Reach - 7.2mm Min Bore Dia (7mm Shank)
044-00053
M772GSW150L15RVBX
Microscope Square Grooving Insert.
Features and Benefits:
-
Better chip evacuation for secure machining.
-
Longer tool life.
View the full Vargus Microscope Catalogue HERE.
| Description | M772GSW150L15RVBX |
| Shank Dia d(mm) |
7.0 |
| Min Bore Dia D min. (mm) |
7.2 |
| Groove Width W±0.025 | 1.50 |
| t max | 2.5 |
| L1 | 15 |
| F | 3.40 |
| Rad | 0.1 |
| a | 6.90 |
| b | 4.1 |
| L2 ref* | 16.4 |
| L ref | 41 |
| Grade | VBX |
| EXT/INT | INT |
| R/L Hand | RH |
