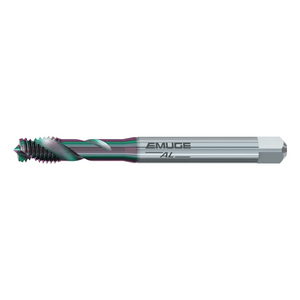

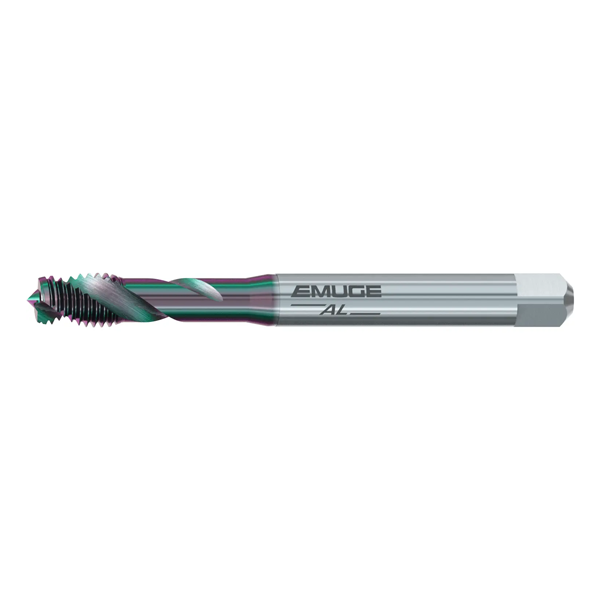

5/16 - 24 UNJF - Emuge Spiral Flute 3B Tolerance AL Tap GLT-104 Coated

B0503G10.5512

Emuge

  • £89.14


5/16-24 UNJF - SF - AL - GLT-104

HSSE tap for applications in wrought aluminium and copper materials.

GLT-104 coating - Special coating for even higher surface quality with reduced material adhesion.

Product features and benefits:

  • Tap for blind hole threads in long-chipping material.
  • Similar DIN 371
  • Chamfer Form C
  • Not available on next day delivery, please contact us to check availability if urgent. Standard delivery is 2-3 business days.

Thread UNJF
Nominal Size 5/16
Threads per inch (TPI) 24
Coolant Supply Without
Geometry AL

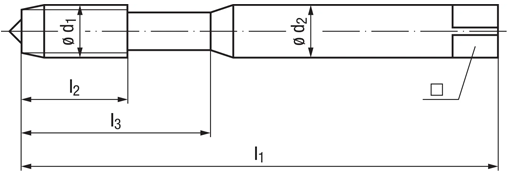

Shank Diameter (d2) 8mm
OAL (l1) 90mm
Length of cutting edge (l2) 10mm
Usable Length (l3) 35mm
Square ■ 6.2mm
Tap hole diameter 7mm
B0503G10.5512
5/16 - 24 UNJF - EMUGE SPIRAL FLUTE 3B TOLERANCE AL TAP GLT-104 COATED
