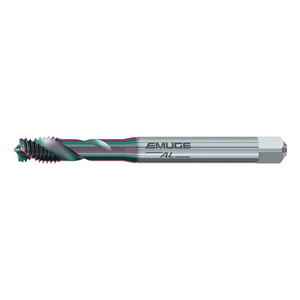

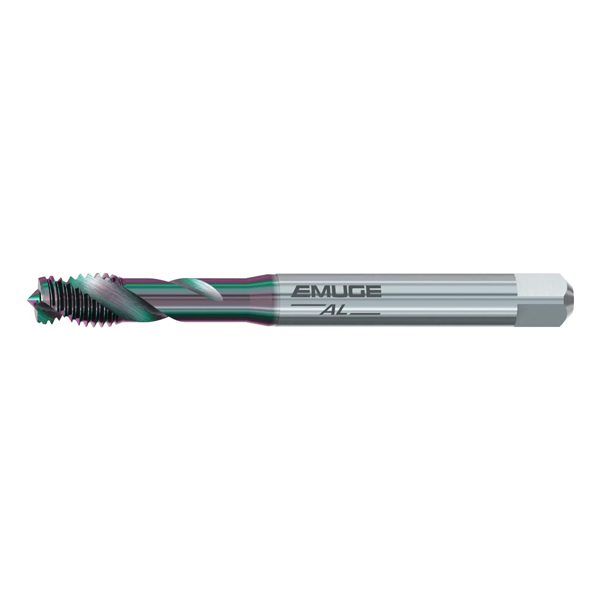

Nr.10 - 32 UNJF - Emuge Spiral Flute 3B Tolerance AL Tap GLT-104 Coated
B0503G10.5509
Nr.10-32 UNJF - SF - AL - GLT-104
HSSE tap for applications in wrought aluminium and copper materials.
GLT-104 coating - Special coating for even higher surface quality with reduced material adhesion.
Product features and benefits:
- Tap for blind hole threads in long-chipping material.
- Similar DIN 371
- Chamfer Form C
- Not available on next day delivery, please contact us to check availability if urgent. Standard delivery is 2-3 business days.
| Thread | UNJF |
| Nominal Size | #10 |
| Threads per inch (TPI) | 32 |
| Coolant Supply | Without |
| Geometry | AL |

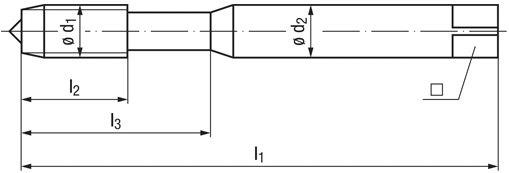

| Shank Diameter (d2) | 6mm |
| OAL (l1) | 70mm |
| Length of cutting edge (l2) | 10mm |
| Usable Length (l3) | 25mm |
| Square ■ | 4.9mm |
| Tap hole diameter | 4.15mm |
