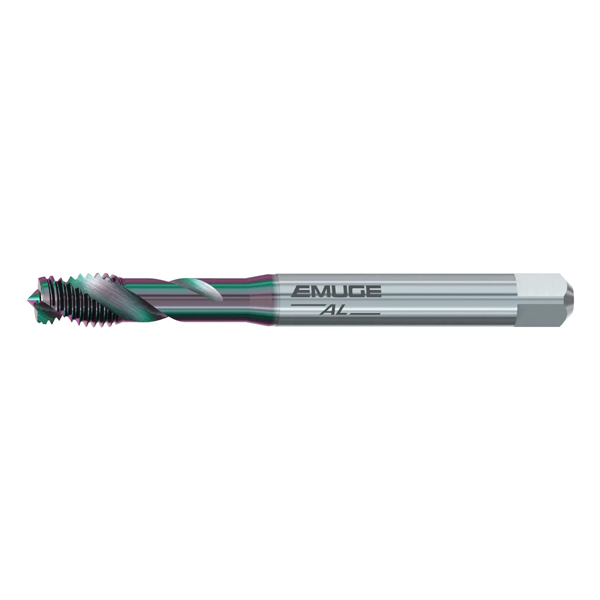

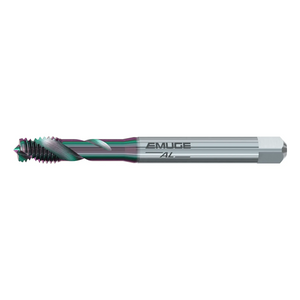

Nr.8 - 36 UNJF - Emuge Spiral Flute 3B Tolerance AL Tap GLT-104 Coated

B0503G10.5508

Emuge

  • £73.09


Nr.8-36 UNJF - SF - AL - GLT-104

HSSE tap for applications in wrought aluminium and copper materials.

GLT-104 coating - Special coating for even higher surface quality with reduced material adhesion.

Product features and benefits:

  • Tap for blind hole threads in long-chipping material.
  • Similar DIN 371
  • Chamfer Form C
  • Not available on next day delivery, please contact us to check availability if urgent. Standard delivery is 2-3 business days.

Thread UNJF
Nominal Size #8
Threads per inch (TPI) 36
Coolant Supply Without
Geometry AL

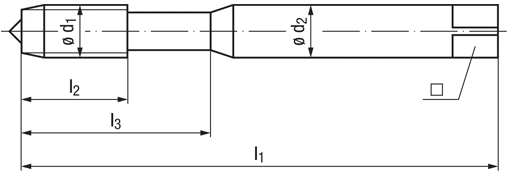

Shank Diameter (d2) 4.5mm
OAL (l1) 63mm
Length of cutting edge (l2) 8mm
Usable Length (l3) 21mm
Square ■ 3.4mm
Tap hole diameter 3.55mm
B0503G10.5508
