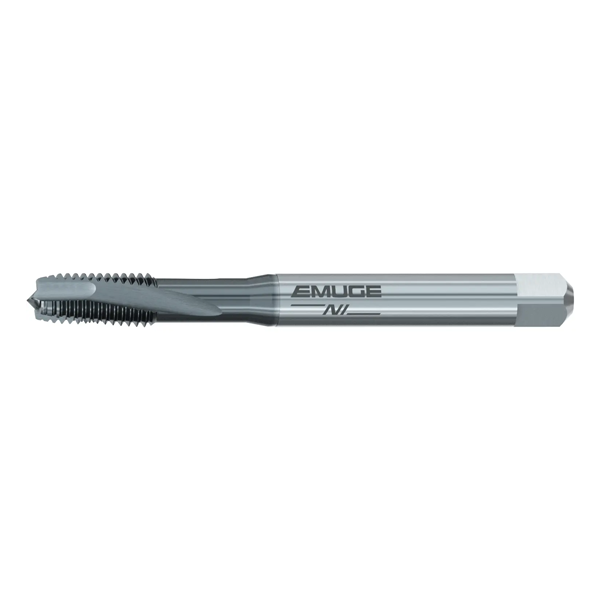

5/16 - 24 UNJF - Emuge Spiral Flute 3BX Tolerance NI HSSE-PM Tap TICN Coated
B438J411.5512
5/16-24 UNJF - SF - NI - PM - TICN
HSSE-PM taps for applications in nickel, cobalt, iron and titanium alloys.
TICN coating.
Product features and benefits:
- Tap for blind hole threads in long-chipping material.
 - Similar DIN 371
 - Chamfer Form C
 - Additional chip divider "F" (clearance grinding) for narrow rolled or small broken chips.
 - Not available on next day delivery, please contact us to check availability if urgent. Standard delivery is 2-3 business days.



| Thread | UNJF |
| Nominal Size | 5/16 |
| Threads per inch (TPI) | 24 |
| Coolant Supply | Without |
| Geometry | NI |

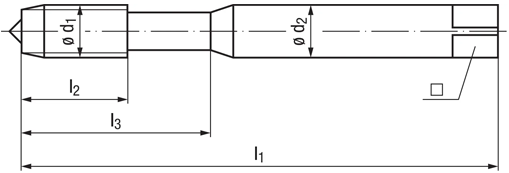

| Shank Diameter (d2) | 8mm |
| OAL (l1) | 90mm |
| Length of cutting edge (l2) | 17mm |
| Usable Length (l3) | 35mm |
| Square ■ | 6.2mm |
| Tap hole diameter | 7mm |
