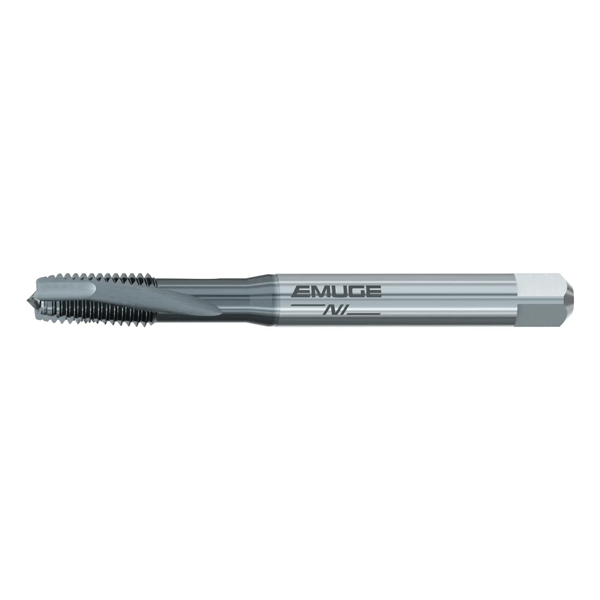

Nr.6 - 40 UNJF - Emuge Spiral Flute 3BX Tolerance NI HSSE-PM Tap TICN Coated

B438J411.5507

Emuge

  • £142.02


Nr.6-40 UNJF - SF - NI - PM - TICN

HSSE-PM taps for applications in nickel, cobalt, iron and titanium alloys.

TICN coating.

Product features and benefits:

  • Tap for blind hole threads in long-chipping material.
  • Similar DIN 371
  • Chamfer Form C
  • Additional chip divider "F" (clearance grinding) for narrow rolled or small broken chips.
  • Not available on next day delivery, please contact us to check availability if urgent. Standard delivery is 2-3 business days.

Thread UNJF
Nominal Size #6
Threads per inch (TPI) 40
Coolant Supply Without
Geometry NI

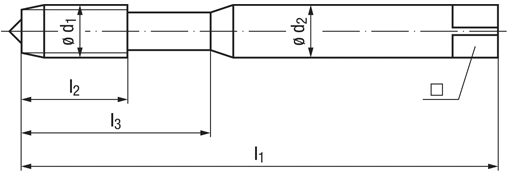

Shank Diameter (d2) 4mm
OAL (l1) 56mm
Length of cutting edge (l2) 12mm
Usable Length (l3) 20mm
Square ■ 3mm
Tap hole diameter 3mm
B438J411.5507
NR.6 - 40 UNJF - EMUGE SPIRAL FLUTE 3BX TOLERANCE NI HSSE-PM TAP TICN COATED
