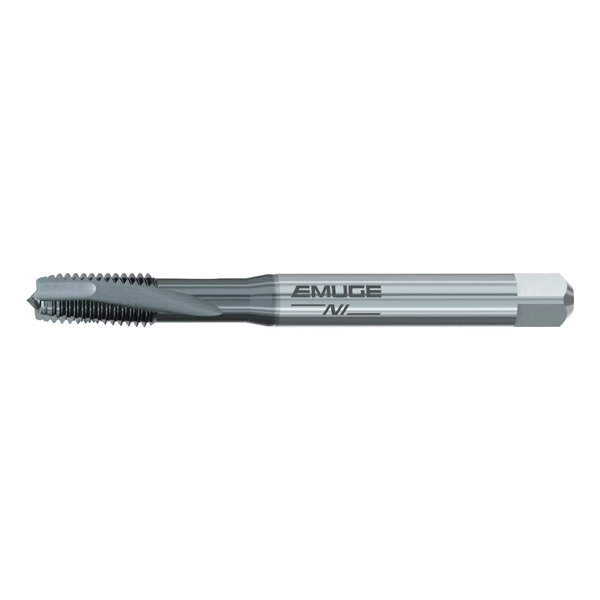

Nr.8 - 36 UNJF - Emuge Spiral Flute 3BX Tolerance NI HSSE-PM Tap TICN Coated

B438J411.5508

Emuge

  • £143.64


Nr.8-36 UNJF - SF - NI - PM - TICN

HSSE-PM taps for applications in nickel, cobalt, iron and titanium alloys.

TICN coating.

Product features and benefits:

  • Tap for blind hole threads in long-chipping material.
  • Similar DIN 371
  • Chamfer Form C
  • Additional chip divider "F" (clearance grinding) for narrow rolled or small broken chips.
  • Not available on next day delivery, please contact us to check availability if urgent. Standard delivery is 2-3 business days.

Thread UNJF
Nominal Size #8
Threads per inch (TPI) 36
Coolant Supply Without
Geometry NI

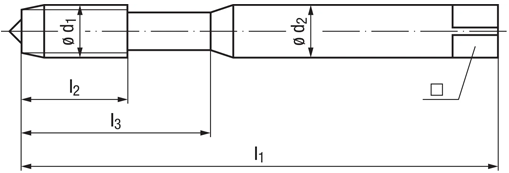

Shank Diameter (d2) 4.5mm
OAL (l1) 63mm
Length of cutting edge (l2) 13mm
Usable Length (l3) 21mm
Square ■ 3.4mm
Tap hole diameter 3.55mm
B438J411.5508
NR.8 - 36 UNJF - EMUGE SPIRAL FLUTE 3BX TOLERANCE NI HSSE-PM TAP TICN COATED
