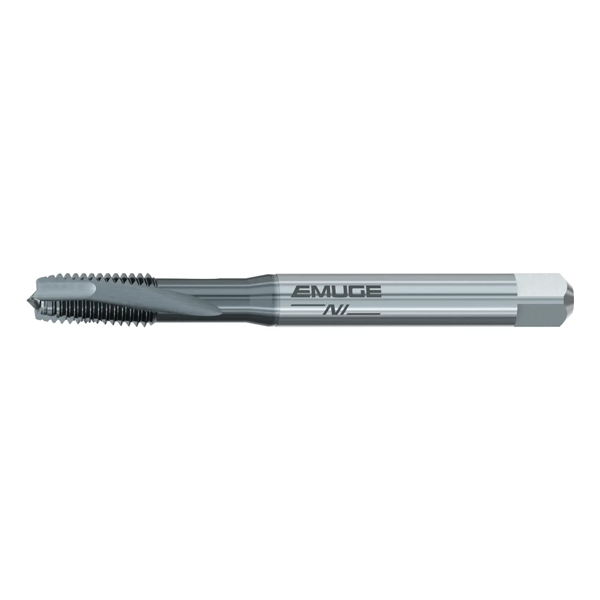

Nr.4 - 48 UNJF - Emuge Spiral Flute 3BX Tolerance NI HSSE-PM Tap TICN Coated
B438J411.5505
Nr.4-48 UNJF - SF - NI - PM - TICN
HSSE-PM taps for applications in nickel, cobalt, iron and titanium alloys.
TICN coating.
Product features and benefits:
- Tap for blind hole threads in long-chipping material.
 - Similar DIN 371
 - Chamfer Form C
 - Additional chip divider "F" (clearance grinding) for narrow rolled or small broken chips.
 - Not available on next day delivery, please contact us to check availability if urgent. Standard delivery is 2-3 business days.



| Thread | UNJF |
| Nominal Size | #4 |
| Threads per inch (TPI) | 48 |
| Coolant Supply | Without |
| Geometry | NI |

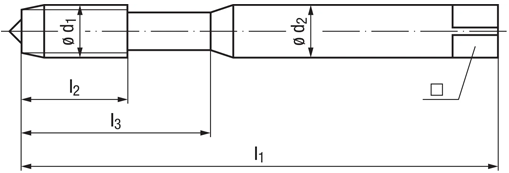

| Shank Diameter (d2) | 3.5mm |
| OAL (l1) | 56mm |
| Length of cutting edge (l2) | 11mm |
| Usable Length (l3) | 18mm |
| Square ■ | 2.7mm |
| Tap hole diameter | 2.4mm |
NR.4 - 48 UNJF - EMUGE SPIRAL FLUTE 3BX TOLERANCE NI HSSE-PM TAP TICN COATED
